NXON1

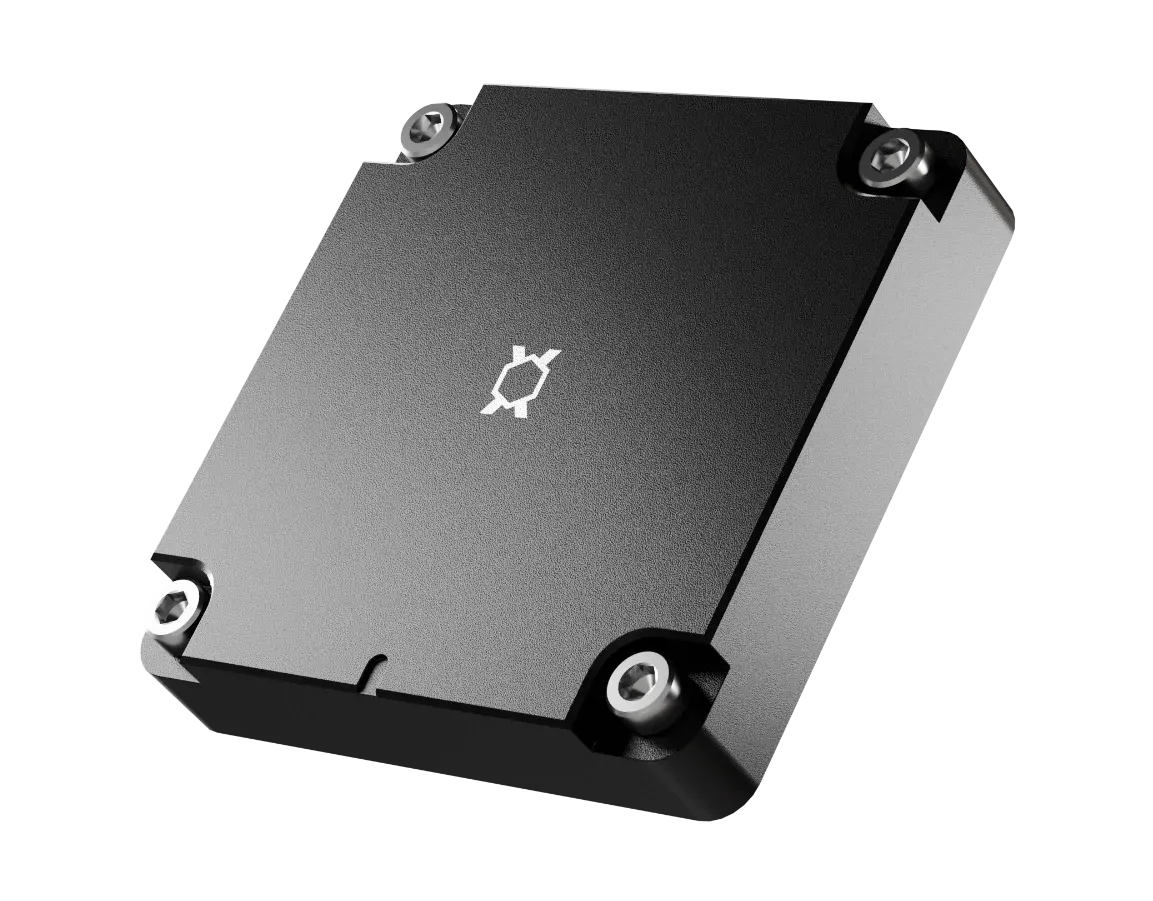

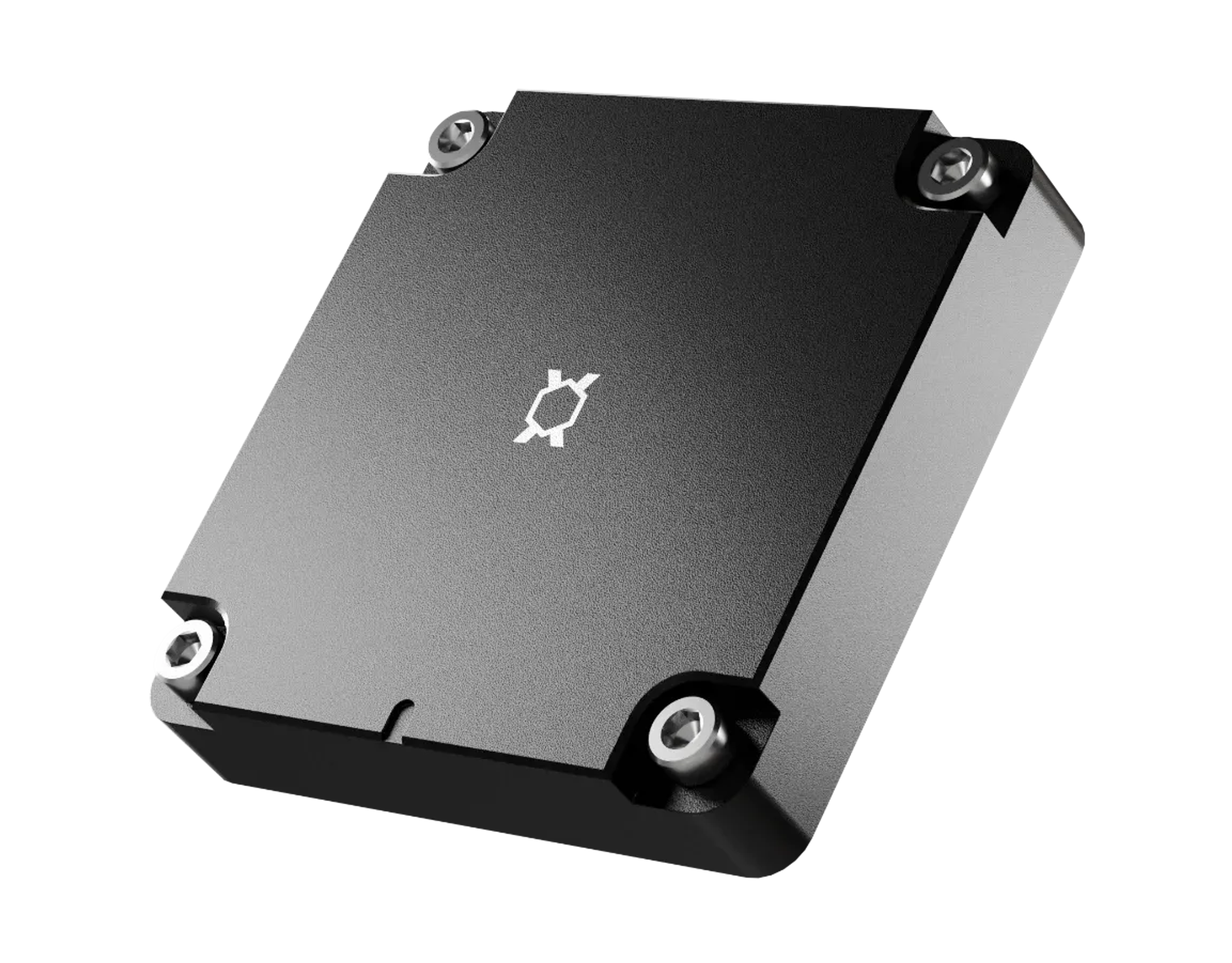

Sparrow
Open programmable HW platform
Sparrow is a compact computing platform that enables a distributed onboard computer with isolated functions, independent processing and higher mission resilience.
Main Features
Multi-node platform for CubeSats
Sparrow is a computing node that can operate standalone or be combined with additional nodes to form a scalable distributed onboard computer.
Small size
Sparrow was designed to be as small as possible
30 x 30 x 7.5 mm
Low power consumption
Minimal impact on power budget
Power consumption
< 0,033 W
Higher mission reliability through redundant multi-node configurations
Increased tolerance to radiation upsets by distributing workloads
Easy integration
Support for onboard autonomy and advanced data processing
Improved fault isolation between critical and experimental software
Optimize space, maximize functionality
Each Sparrow can handle different sub-roles at the OBC level, allowing tailored functionality for various mission requirements. Available as programmable hardware platform for customized software solutions.
Dedicated roles
Assign specific tasks like navigation, timing, or data processing to each Sparrow, optimizing satellite operations.
Enhanced redundancy
Utilize multiple Sparrows to create redundant systems, increasing reliability and fault tolerance in critical missions.
Pricing
2-4 units
Small batch
2750 €
per unit
15% discount on order for universities and research institutes applicable.
5-6 units
Standard order quantity
2500 €
per unit
15% discount on order for universities and research institutes applicable.
7+ units
Bulk procurement
Get in touch
15% discount on order for universities and research institutes applicable.
Specifications
Performance
| Accuracy | 4 km RMS |
| Update Rate | 2 Hz |
Mechanical
| Dimensions | 30 x 30 x 7,5 mm |
| Mass | 9 g |
Electrical
| Power Supply | 3,3 V |
| Power Consumption | 0,033 W |
| I/O | 6x Analog IN (or 6x digital I/O), 1PPS OUT |
| BUS | 2x I2C, 2x RS485, 1x UART |
| Communication Protocol | User-defined |
Environmental
| Operation Temperature | -45 °C to +85 °C |
| Radiation Tolerance | >20 krad(Si) |
Other
| External super capacitor for backup | |
| Lead Time | <12 weeks |
