NXSS3v10
Flight heritage
Dual-use
Eagle
The Most Reliable CubeSat Sun Sensor
Flight-proven fine sun sensor for 1–3U CubeSats, designed for reliable sun vector acquisition with simple spacecraft integration and low power demand.
| Lead time: | <7 weeks |
| Price: | from 1600€ |
Main Features
Small size
Eagle is one of the smallest CubeSat sun sensors in the world
15 x 15,5 x 4,6 mm
Proven reliability
Longest deployment: 4,5 years fully functional in orbit on GRBAlpha
Flight heritage since
2017
Precise
Designed for high precision
Precision
0,09°
at 1σ
Easy integration
Integration made simple
Eagle was designed to be easy to integrate, saving you a lot of time.
Bus
Protocols
Reference Python scripts included
Low power consumption
Maximized efficiency, minimized demand
Power consumption (constant)
0,007 W
Sun sensor NXSS3V10 Eagle operates independently of the onboard computer. All calculations are performed by the built-in microcontroller, giving you calibrated information about the position angles in two axes. You can then define parameters and corrections for measuring and processing data over time.
Save space inside your nanosatellite

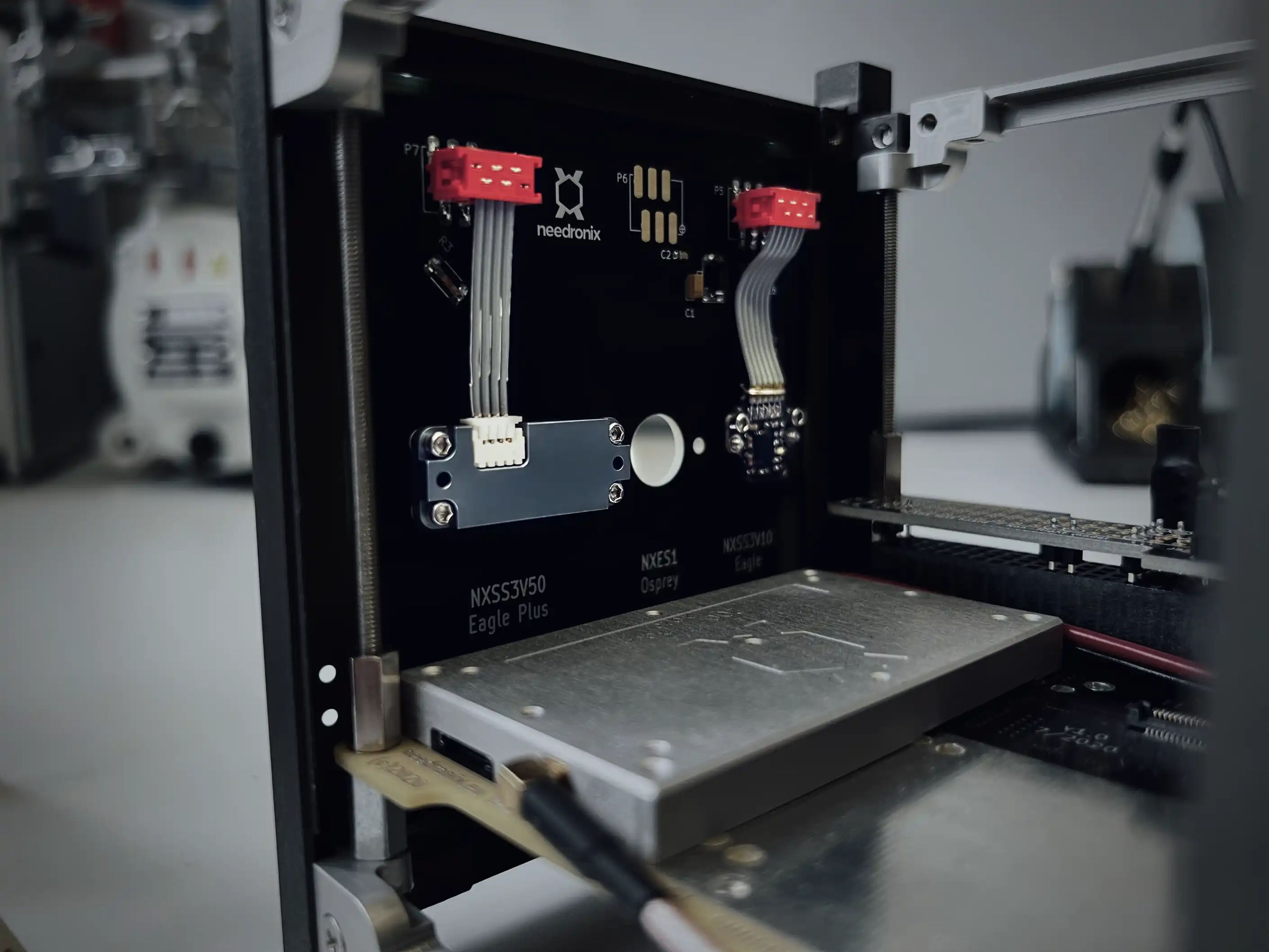

Eagle can fit between the solar panels. By mounting these sensors in underutilized areas such as between the solar panels, you not only enhance the efficiency of your satellite but also save valuable space for additional payloads.
Tested and calibrated in our state-of-the-art test facility
Each Eagle undergoes rigorous calibration and exceptionally precise characterization within our proprietary test facility, co-developed with the
European Space Agency to deliver reliable sun
vector data.
±0,01°
Zero position alignment accuracy
Bi-directional repeatability
Guaranteed ±0.0006 degrees
Newport motors
Integrated reference encoder
AM0
Solar simulator
Applications
Accurate sun position determination
CubeSat attitude determination
CubeSat solar panel positioning
Nanosatellites, rovers, suborbital rockets, balloons, UAVs
Featured Mission
GRBAlpha
Launch date
22 March 2021
Re-entry date
9 June 2025
GRBAlpha was a 1U cubesat equipped with state-of-the-art instruments to capture and analyze gamma ray bursts, providing valuable insights into their origins and behavior. GRBAlpha was the first cubesat to detect a gamma ray burst and its data was used by NASA. NXSS3 Eagle sun sensors and NXTRX4 Cormorant transceiver were vital components of this nanosatellite.
Pricing
3-5 units
Small batch
2100 €
per unit
15% discount on order for universities and research institutes applicable.
6-8 units
Standard order quantity
1900 €
per unit
15% discount on order for universities and research institutes applicable.
9+ units
Bulk procurement
Get in touch
15% discount on order for universities and research institutes applicable.
Specifications
Performance
| Field of View | 110° x 110° |
| Precision (1σ) | 0,09° |
| Accuracy (3σ) | < ±0,15° |
| Update Rate | 10 Hz |
| Albedo Detection | Partial |
Mechanical
| Dimensions | 15 x 15,5 x 4,6 mm |
| Mass | 3 g |
Electrical
| Power Supply | 3,3 V |
| Power Consumption (Constant) | 0,007 W |
| BUS | I2C |
| Communication Protocol | CSP or I2C slave |
Environmental
| Operation Temperature | -45 °C to +85 °C |
| TVC 100 Cycles | -70 °C to +110 °C |
| Radiation Tolerance | >20 krad(Si) |
NXSS3V10 Eagle is supplied in a fully space-qualified state, having undergone all essential environmental tests necessary for technologies ready for space flight.
Resources
Interface control documents
3D models
User manuals
Request information
Fill out the form below and our team will get back to you within 24 hours.
Comparison to Eagle Plus

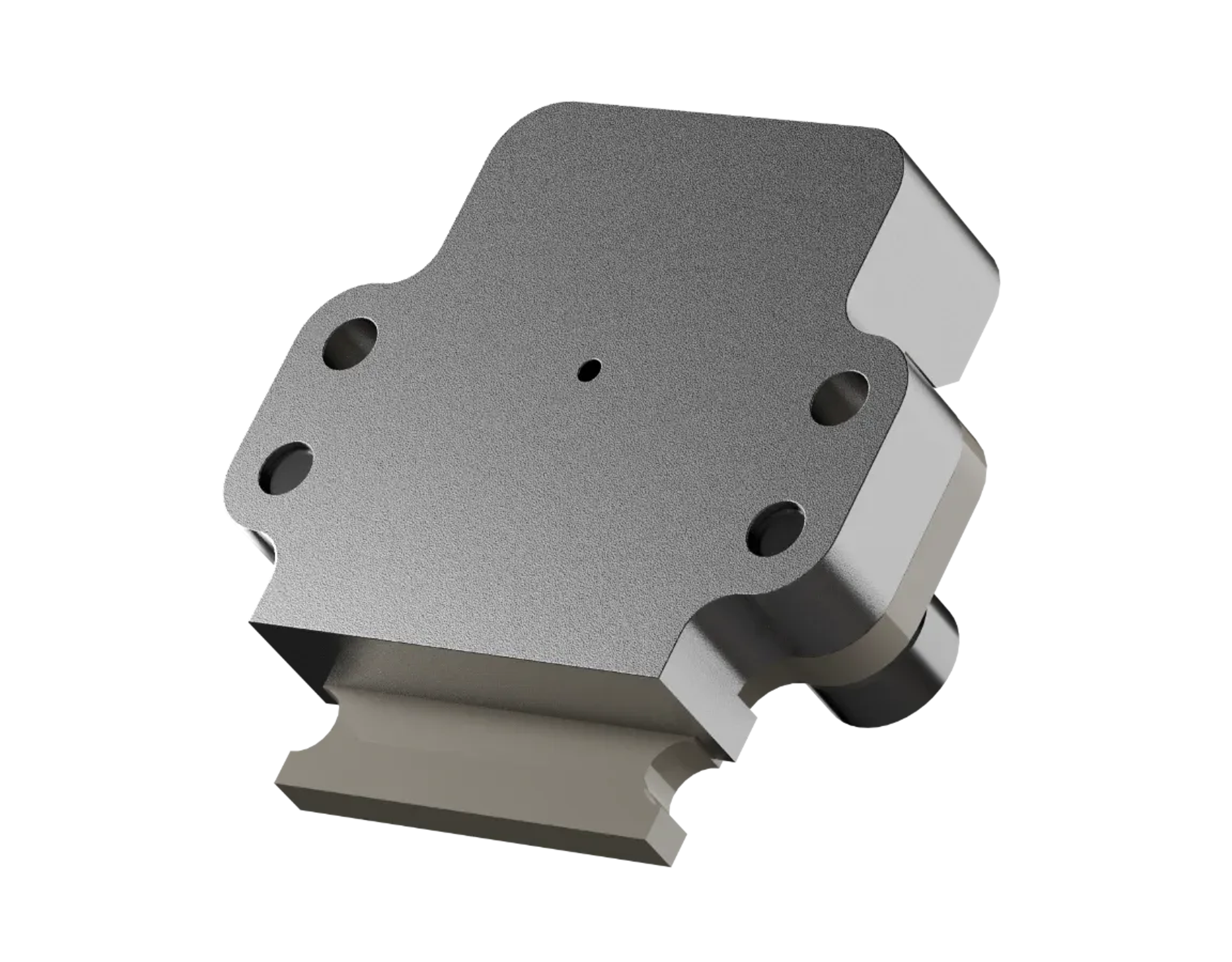

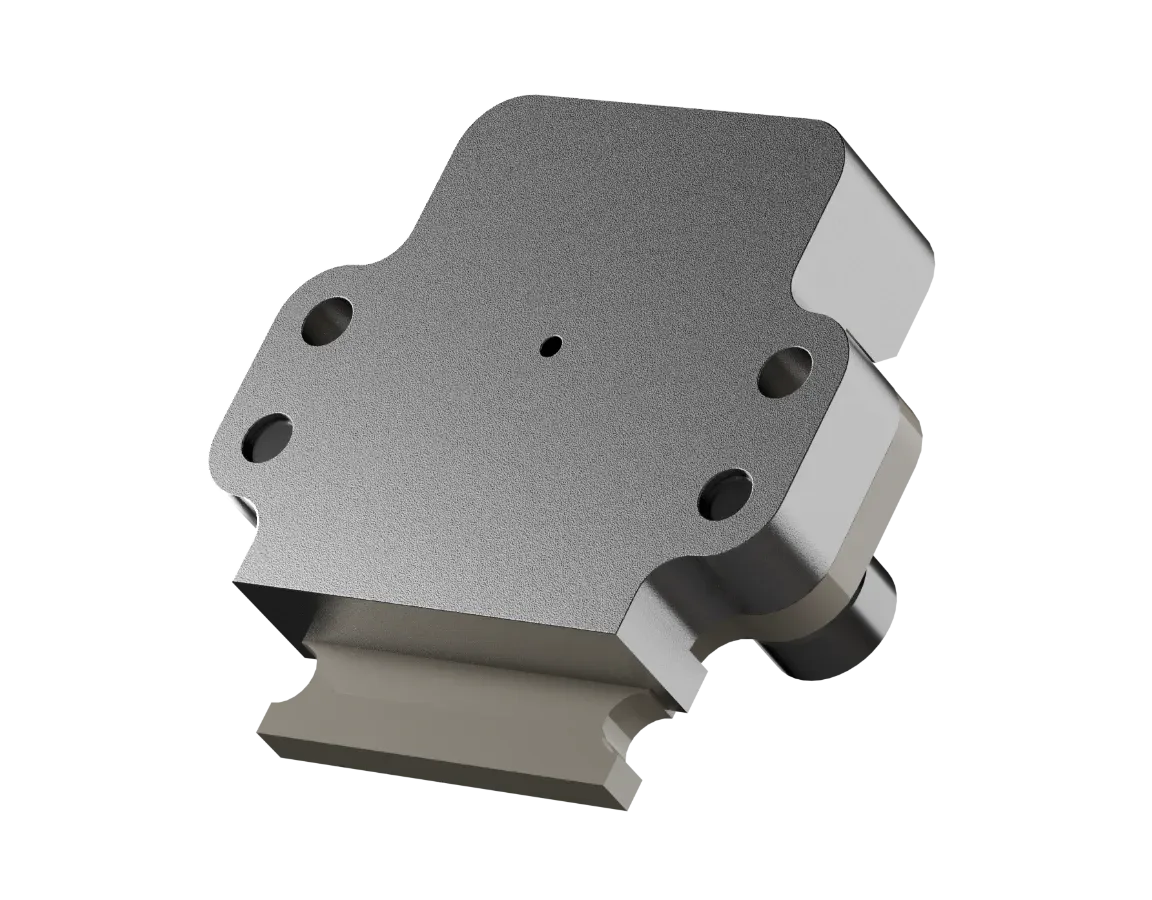

Eagle
Miniature. Efficient. Lightweight. Precise.
Spacecraft Type
1-3U CubeSat
Dimensions
15 x 15,5 x 4,6 mm
Mass
3 g
Precision (1σ)
0,09°
Accuracy (3σ)
< ±0,15°
Update Rate
10 Hz
BUS
I2C
Connector
Direct ribbon (6 wire)
Power Consumption
0,007 W
Sample & Hold Function
No
Flight Heritage
Since 2017

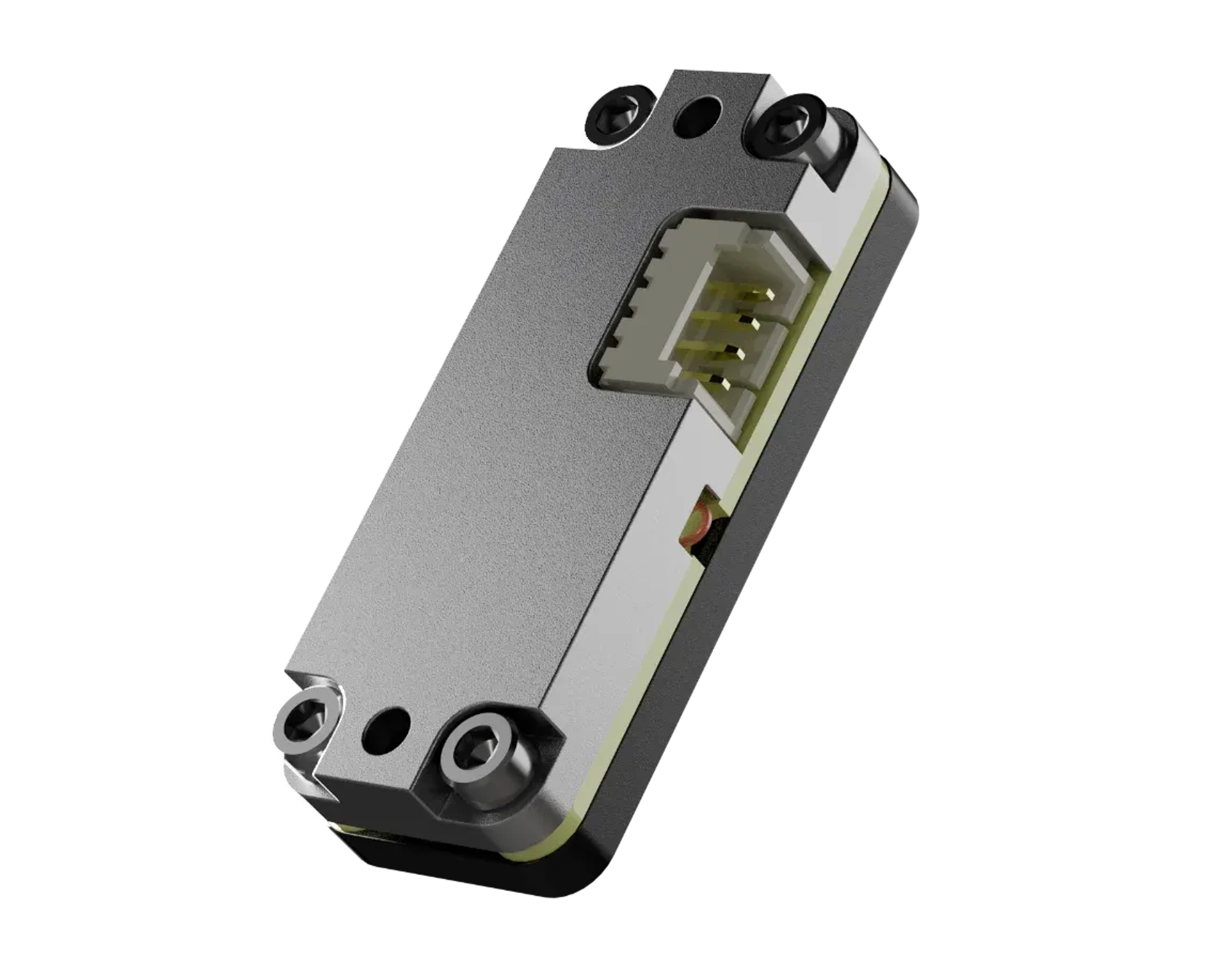

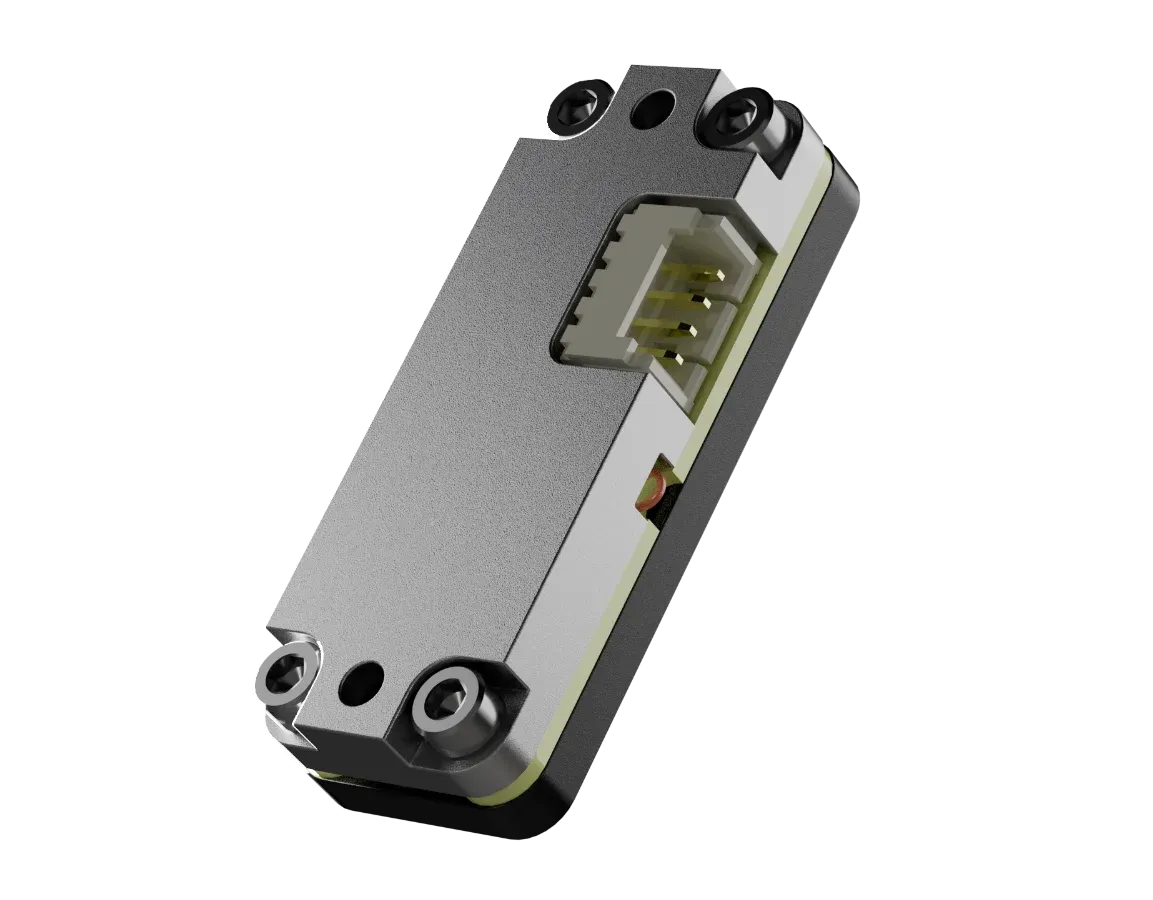

Eagle Plus
High accuracy. High precision.
Spacecraft Type
CubeSat - SmallSat
Dimensions
29,5 x 11,5 x 6,5 mm
Mass
5 g
Precision (1σ)
0,0015°
Accuracy (3σ)
< ±0.1°
Update Rate
166 Hz
BUS
RS485
Connector
Molex Picoblade (4 pin)
Power Consumption
0,015 W
Sample & Hold Function
Yes
Flight Heritage
Since 2025
Get in touch for our CubeSat ADCS developers partnership opportunities for enhanced collaboration.
